ฟีเจอร์
🔹Replica V8 engine, transmission housing and transfer case cover and protect the motor while improving scale appearance
🔹Chassis tray accepts full-size, "standard" LiPo or NiMH batteries, with space on the side rails for running small pack sizes
🔹DIG function lets you lock the rear axle from the transmitter for front wheel drive and a tighter turning radius
🔹Two-speed transmission option available for high and low speeds
🔹Portal axles increase ground clearance and reduce torque twist
🔹Adjustable wheelbase chassis allows each driver to choose the size of their chassis
🔹Inner fenders and floor sides hide internal components usually visible from the side of the chassis
🔹Licensed KMC Machete 3-piece beadlock wheels provide scale looks and let you remove and replace tires without gluing
🔹Officially licensed Nitto Trail Grappler tires in a new taller and wider size increase ground clearance and grip
🔹Fully rebuildable, oil-filled shocks include clear anodized, threaded shock bodies, coilover springs, and an emulsion-style cap with screw for easier rebuilds
🔹Spektrum™ DX3™ 2.4GHz DSMR® radio offers superior range, response, and interference resistance and is Smart technology compatible
🔹High-quality Spektrum™ Firma™ Smart 40A ESC/receiver provides the innovative telemetry capabilities of exclusive Spektrum™ Smart technology
🔹Metal gear, 15kg high torque servo is waterproof for driving with confidence in any weather and trail conditions
🔹Scale Jeep® Wrangler Unlimited body with detailed interior

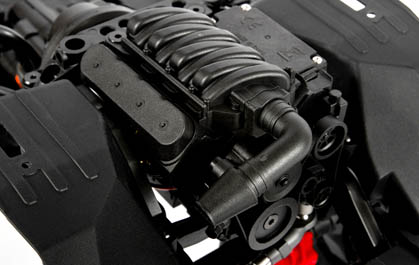

SCALE ENGINE DETAIL
Scale features including a replica V8 engine, transmission housing, and transfer case all cover and protect the included brushed motor while adding to the realistic appearance.

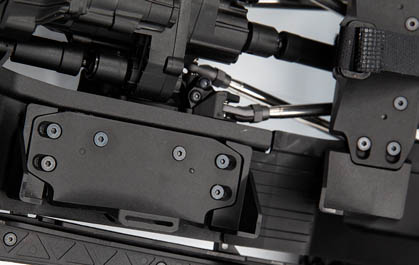

MULTIPLE BATTERY MOUNTING LOCATIONS
The SCX10™ III Jeep® JLU Wrangler has a standard battery tray that accepts full-size "standard" LiPo or NiMH packs. There's space on the side rails, too, for drivers who prefer smaller size packs.

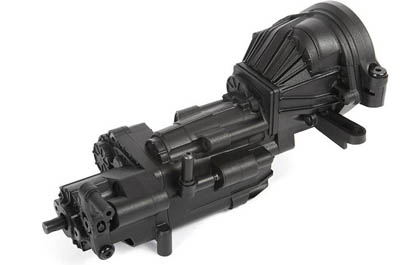

DIG TRANSMISSION WITH TWO-SPEED OPTION
The transmission arrives set up with a DIG function for locking the rear axle from the transmitter, giving you the tight turning radius of front wheel drive on demand — Micro Dig Servo (SPMSSX107) included! You can also choose to set up the vehicle for a two-speed transmission instead, by taking the included Micro Dig Servo and moving it to the two-speed linkage. The transmission also includes a full set of ball bearings and all-metal internal gears for strength and durability.
PORTAL OFFSET AXLE HOUSING WITH HYPOID RING AND PINION GEAR
Portal Axles like those found in some full-size off-roaders provide higher ground clearance and reduce the torque on other drivetrain components for improved performance.

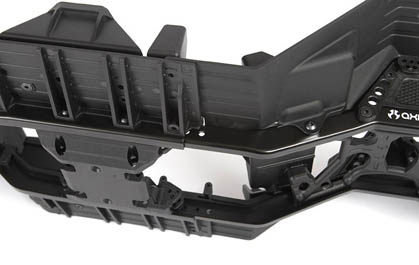

ADJUSTABLE WHEELBASE CHASSIS
JLU Wrangler wheelbase is adjustable to let you choose the size of your chassis. The chassis is stiffer than the previous SCX10™ II chassis, for less frame flexing and more precise suspension movement.

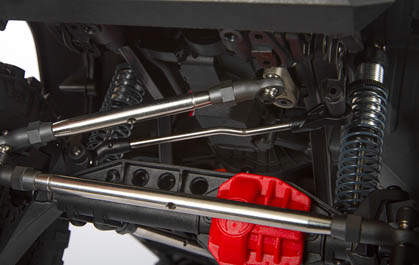

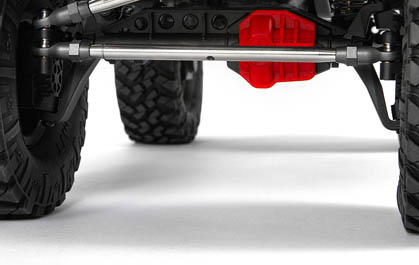

OPTIMIZED SUSPENSION GEOMETRY
The suspension geometry is based on the SCX10™ II but refined slightly for the new chassis layout. The front suspension has been optimized to reduce bump steer, while the rear 4-link reduces torque twist.

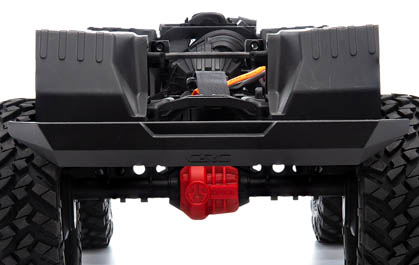

FENDER LINERS AND FLOOR SIDES
The SCX10™ III Jeep® JLU Wrangler body's fender liners and floor sides hide internal components that would usually be visible from the side of the chassis.

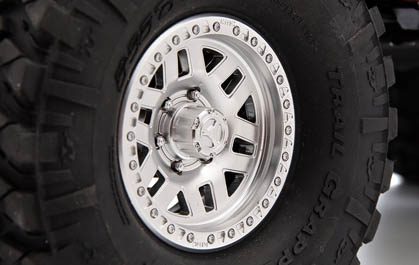

LICENSED 3-PIECE BEADLOCK WHEELS
Legendary in the off-road world, these officially licensed KMC XD Machete wheels are molded in black and include stunning scale details. Because they're 3-piece beadlock wheels, tires can be mounted, removed and replaced easily without gluing.

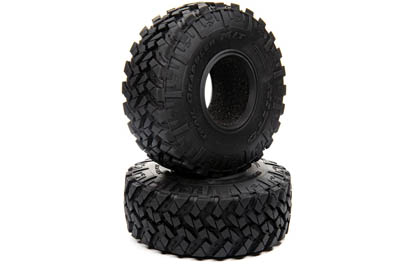

NITTO TRAIL GRAPPLER TIRES
The R35 compound Nitto Trail Grappler tires included with the SCX10™ III Jeep® JLU Wrangler are taller and wider (4.7 x 1.7), providing more ground clearance and more grip on dirt, rocks, and all other off-road trails.

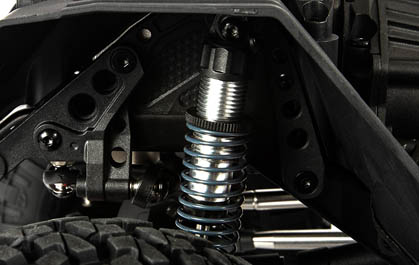

ALUMINUM ADJUSTABLE COILOVER SHOCKS
The oil-filled shocks have hard anodized, threaded bodies, a single coilover spring, plus an emulsion-style cap with screw for easier rebuilds. The shocks are tunable for achieving the best dampening rate. Their increased bore size also creates more fluid volume for better performance.

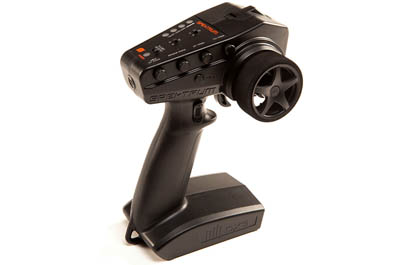

SPEKTRUM DX3 2.4GHz DSMR TRANSMITTER
The included Spektrum™ DX3™ radio features exclusive DSMR® technology for superior range, response, and interference resistance. It's also fully compatible with the Smart telemetry potential provided by the vehicle's installed Spektrum™ Firma™ Smart 40A ESC/receiver.

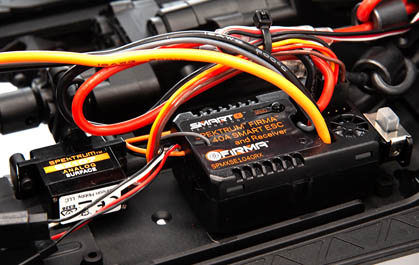

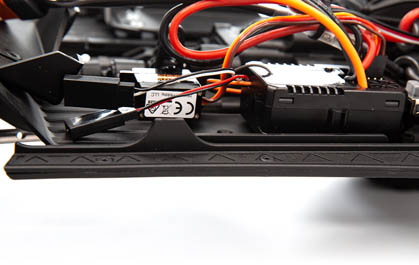

SPEKTRUM™ FIRMA™
With the Firma™ Smart 40A ESC/receiver and DX3™ transmitter, you're equipped to experience the telemetry advantages of exclusive Spektrum™ Smart technology. Install a Spektrum Smart LiPo battery to follow vehicle battery capacity on the transmitter's voltage level indicator. Drive with confidence in any weather and trail conditions — the electronics are also protected by a waterproof design.

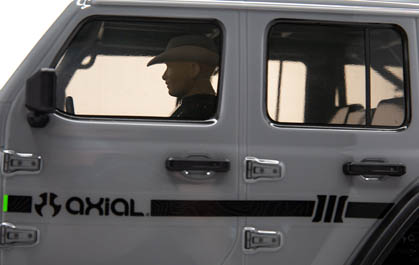

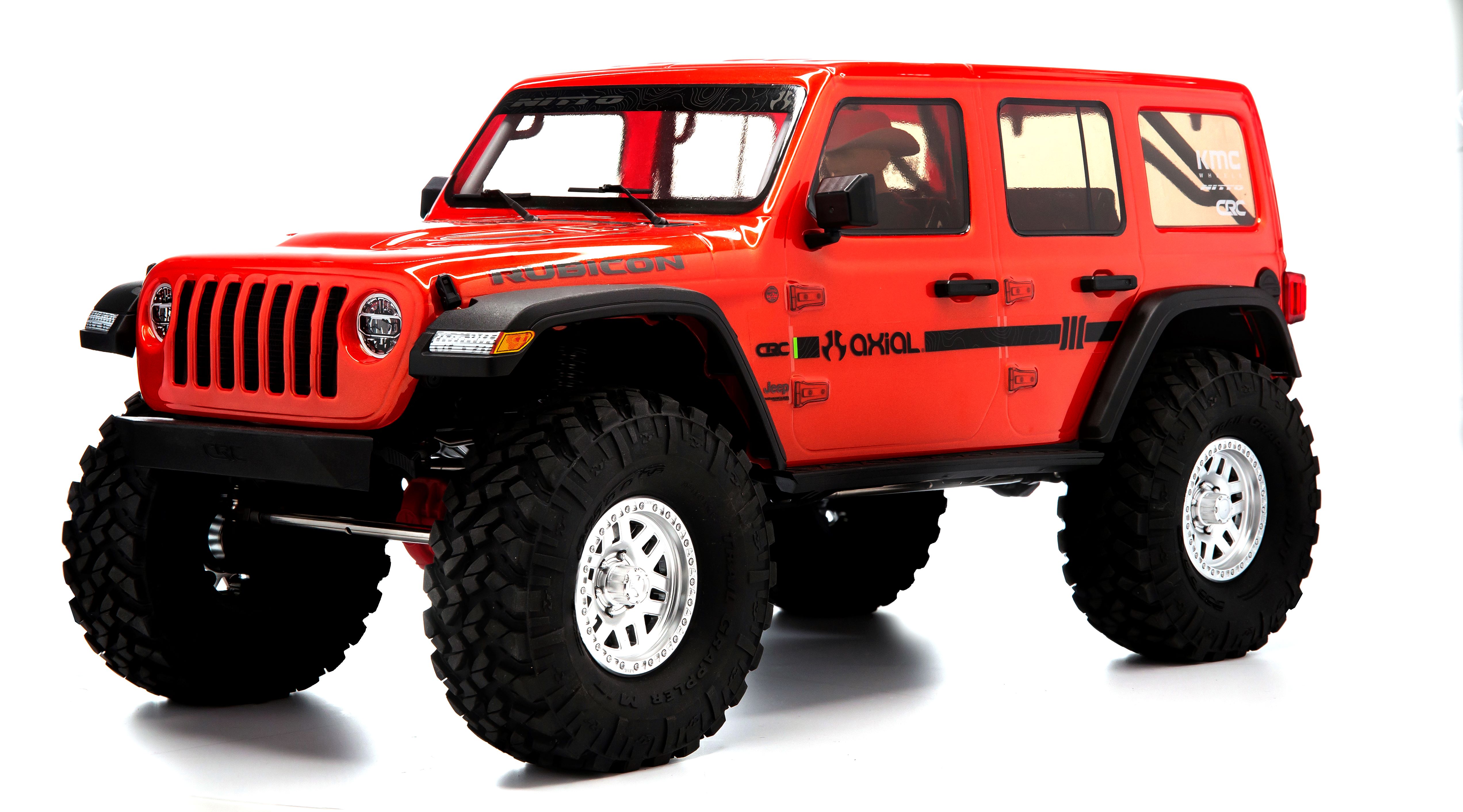

JEEP WRANGLER UNLIMITED 4-DOOR BODY
The scale Jeep® Wrangler Unlimited body mirrors its full-size counterpart with a detailed interior for "super scale" looks. The interior has a molded roll cage, steering wheel, and driver head. There are many molded scale details on the body, too: front radiator/light buckets; front hood vents; front cowl; windshield wipers; mirrors; door handles; fuel door; and spare tire.
Battery
Sold Separately
Ground Clearance
3" (76.2mm)
Motor Size
540
Product Length
19.125" (486 mm)
Spur Gear
40T
Steering Type
2WS
Suspension
Multi-link solid axle
Wheel Width
1 in (25.4mm)
Motor Type
Brushed
Speed Control
Included
Wheelbase
12.3 in (312mm)
Ball Bearings
Full set
Chassis
Adjustable steel C-channel
Completion Level
Ready-To-Run
Drivetrain
4WD
Product Height
9.5" (241 mm)
Wheel Hex Size
12mm
Product Width
9.25" (235 mm)
Radio
Included
Technology
Smart
Approximate Assembly Time
No assembly required
Body
Polycarbonate
Brakes
Integral with ESC
Pinion
14T
Scale
1/10
Power Type
Electric
Gear Pitch
32-Pitch
Bushing Material
Metal
Charger
Sold Separately
Differential
Locked
Shock Type
Oil-filled coil over
Product Weight
6.5 lbs (2.9kg)
Tire Tread
Nitto Trail Grappler M/T
Vehicle Type
Rock Crawler
Water-Resistant
Yes
เงื่อนไขอื่นๆ
สิ่งที่ต้องซื้อเพิ่ม
(1) 2-3S Standard or “Shorty” LiPo Battery with EC3™ or IC3™ connector
